When World Wide Electronics took on the job of installing a large outdoor SMD LED display in Lahore, the goal was simple on paper and demanding in practice: build a screen big enough to command attention on a busy commercial stretch, strong enough to survive Lahore’s weather, and sharp enough to look good from both close range and a distance. The finished installation covers roughly 770 square metres, making it one of the larger outdoor LED display projects completed in the city in recent years.
This case study walks through how the project came together, from the reasoning behind the technology choice to the installation itself, and looks at why this particular SMD LED Screen in Pakistan project has become a reference point for what an outdoor SMD LED display can look like when it is planned and executed properly.
Lahore has no shortage of outdoor screens, but most are modest in size and built for short-term advertising campaigns. This project was different from the start. The client wanted a display that could function as a long-term visual landmark, not just another billboard replacement, and that requirement shaped nearly every decision that followed, from panel selection to the structural work underneath the screen.
Project Overview
The project involved designing, supplying, and installing a 770m² outdoor LED display at a commercial site in Lahore. At that scale, the screen is not a single flat panel but a large curved and multi-angled structure, built up from individual LED cabinets fitted together to form a continuous, seamless viewing surface. Getting the geometry right, so that the image reads correctly across every angle of the structure, was one of the more technically involved parts of the build.
World Wide Electronics handled the project end to end: initial site assessment, structural planning, sourcing the display panels, coordinating installation crews, and final calibration once the screen was mounted. Because the display sits outdoors and faces direct sun, rain, and Lahore’s dust for most of the year, weatherproofing and brightness control were treated as core requirements rather than optional extras.
Why an Outdoor SMD LED Display Was Used
Not every LED technology is suited to outdoor use, and this is where the choice of outdoor SMD screens mattered for the project. SMD, short for surface-mounted device, packs the red, green, and blue diodes into a single compact unit rather than mounting them separately. For an outdoor display of this size, that construction offers a few practical advantages.
First, SMD panels handle direct sunlight better than older LED formats, which matters a great deal in Lahore where the display faces long hours of harsh daylight for most of the year. Second, they allow for a tighter pixel pitch, which keeps the image sharp even when people are viewing the screen from close range at street level, not just from a distance. Third, SMD technology is generally easier to maintain over a large surface area, since individual modules can be serviced without disturbing the rest of the display.
Given the size of this installation and its location on a busy road, durability and image consistency across nearly 770 square metres were non-negotiable. Outdoor SMD was the option that met both requirements without pushing the budget into a range that would have made the project impractical.
Absen and the Technology Behind the Display
The LED panels used in this installation are manufactured by Absen, a company with a long track record in large-format LED displays, including stadium screens, broadcast studios, and major outdoor advertising installations around the world. For a project of this scale, panel quality and consistency between individual modules are critical, since even small variations in brightness or colour temperature become visible once thousands of modules are combined into one continuous image.
The project used Absen LED display technology, while Absen’s official partner directory lists Irfan Corporation as a Value Added Distributor (VAD) for Pakistan and links to World Wide Electronics’ website. This is not a minor detail. It confirms that the panels used in the Lahore installation came through an authorised supply chain rather than grey-market imports, which is a common concern in the outdoor LED market in Pakistan. You can verify this directly through Absen’s official partner directory, which currently shows Irfan Corporation as the recognised VAD for Pakistan and lists worldwideelectronics.com.pk as its associated website.
Working with genuine Absen panels, sourced through the correct distribution channel, gave the project access to proper factory warranties, verified specifications, and long-term technical support, all of which matter far more once a screen this size is installed and running for years rather than months.

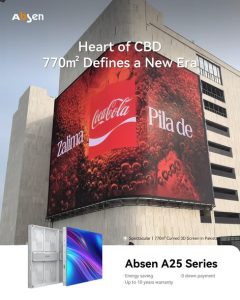

Absen Global Featured the Lahore Installation
Beyond the local recognition the project received in Lahore, the installation also caught attention internationally. Absen’s own social media channels featured the Lahore project as an example of the kind of large-scale outdoor work being done with their display technology in South Asia.
Absen also featured the Lahore installation on its social media, highlighting the 770m² outdoor LED display and its 3D visual design. The post drew attention to the scale of the structure and how the curved, multi-surface layout was used to create a display that reads as a single cohesive visual rather than a flat screen bolted onto a building. You can view Absen’s social media post featuring the Lahore installation for the original coverage.
For World Wide Electronics, having a project of this size acknowledged directly by the panel manufacturer is a useful signal of the quality of the installation work, not just the hardware that went into it. Large LED structures can look impressive in renderings and still fall short once built. This project held up well enough, in finish and in performance, to be highlighted by Absen itself.
The Installation Process
Physically building a 770m² outdoor LED display is closer to a structural engineering project than a typical electronics installation. The team began with a detailed site survey to understand load-bearing capacity, wind exposure, and the exact geometry the screen would need to follow across the building’s facade. Steel framing was designed and fabricated to support the weight of the LED cabinets while allowing for the angles required by the 3D visual layout.
Once the frame was in place, individual LED cabinets were mounted, wired, and calibrated section by section. With a display this large, colour and brightness calibration is not something that can be done once at the end. Each section is checked as it goes up, then the whole display is recalibrated together once fully assembled, so that there are no visible seams or inconsistencies between panels installed on different days or by different crews.
Cabling and power distribution were planned to handle the electrical load of a display this size safely, with proper surge protection and weatherproofing at every junction. Given Lahore’s monsoon season and its dust-heavy summers, every exposed connection point was sealed to a standard suitable for long-term outdoor use rather than a temporary billboard installation.
SMD Screen Solutions & Pricing
Projects of this scale naturally raise questions about cost, and pricing for outdoor SMD displays in Pakistan varies quite a bit depending on pixel pitch, panel brand, and structural complexity. For businesses considering a similar but smaller installation, it helps to look at general SMD Screen Price in Pakistan ranges before requesting a formal quote, since the final cost of any project depends heavily on site conditions and the size of the display being planned.
World Wide Electronics works across a range of budgets, from single-panel storefront screens to large-format installations like the Lahore project. The Absen panels used here sit at the higher end in terms of build quality and pixel accuracy, which is reflected in the price, but the same principles of proper structural planning, authorised sourcing, and careful calibration apply regardless of the size of the screen being installed.
Serving Lahore’s Outdoor LED Market
Lahore has become one of the more active cities in Pakistan for outdoor LED advertising, with commercial areas increasingly favouring digital displays over static billboards. For businesses researching options locally, it is worth comparing vendors carefully, since panel quality, distributor relationships, and installation experience vary widely. A useful starting point is this overview of SMD screens in Lahore, which looks at the vendors currently active in the city.
This project is a fair example of what separates a well-planned outdoor LED installation from a rushed one. The structural work, the choice of an authorised Absen distributor, and the section-by-section calibration process all played a role in the final result holding up to scrutiny, both from the client and, eventually, from Absen’s own global audience.
Results and Impact
Since going live, the display has become a visible landmark on its stretch of road in Lahore, noted for both its size and the clarity of the image it produces even during the day. For the client, the screen functions as a long-term advertising asset rather than a temporary campaign tool, which was the original brief. For World Wide Electronics, the project served as a demonstration of the company’s capacity to handle large-format, structurally complex outdoor LED work from planning through to final calibration.
It also reinforced the value of working directly through authorised distribution channels. With the panels sourced through Irfan Corporation as Absen’s recognised Value Added Distributor for Pakistan, the client has access to genuine warranty support and verified components, something that becomes increasingly important the larger and more expensive an installation gets.
Frequently Asked Questions
What is the size of the outdoor LED display installed in Lahore?
The display covers approximately 770 square metres, making it one of the larger outdoor SMD LED installations completed in Lahore to date. It is built as a curved, multi-angled structure rather than a single flat panel.
Why was SMD technology chosen over other LED display types for this project?
SMD panels handle direct sunlight well, support a tighter pixel pitch for sharper close-range viewing, and are easier to maintain across a large surface. For an outdoor display of this size in Lahore’s climate, these qualities made SMD the more practical choice.
Are the LED panels used in this project genuine Absen products?
Yes. The panels were sourced through Irfan Corporation, listed on Absen’s official partner directory as the recognised Value Added Distributor for Pakistan, with worldwideelectronics.com.pk shown as its associated website. This confirms the panels came through an authorised supply chain rather than unverified imports.
How long does an outdoor SMD LED display like this typically last?
With genuine panels, proper structural support, and correct weatherproofing, an outdoor SMD display of this quality is generally built to run reliably for several years before major component replacement is needed. Regular servicing extends this further.
How much does an outdoor SMD LED screen cost in Pakistan?
Cost depends on pixel pitch, panel brand, screen size, and structural complexity. Smaller storefront-scale screens cost considerably less than a large-format installation like this one. General pricing guidance is available on the SMD Screen Price in Pakistan page linked earlier in this article.
Does World Wide Electronics handle installation outside Lahore as well?
Yes. While this project was based in Lahore, World Wide Electronics works on outdoor and indoor SMD LED installations across other cities in Pakistan as well, scaling the same planning and calibration approach to different site requirements.
How is image consistency maintained across such a large LED surface?
Each section of the display is calibrated as it is installed, then the entire screen is recalibrated together once fully assembled. This prevents visible seams or colour differences between panels mounted on different days or by different installation crews.
Conclusion
The 770m² outdoor SMD LED display in Lahore represents one of the more substantial LED installations completed by World Wide Electronics to date. It brought together careful structural planning, genuine Absen panels sourced through an authorised distributor, and a calibration process built for consistency across a very large surface area. The result is a display that performs reliably in Lahore’s climate and has earned recognition beyond the local market, including from Absen itself.
For businesses in Lahore or elsewhere in Pakistan considering an outdoor SMD LED installation, this project is a useful reference for what proper planning and authorised sourcing can achieve at scale. Smaller projects follow the same underlying principles, just at a different size and budget.
